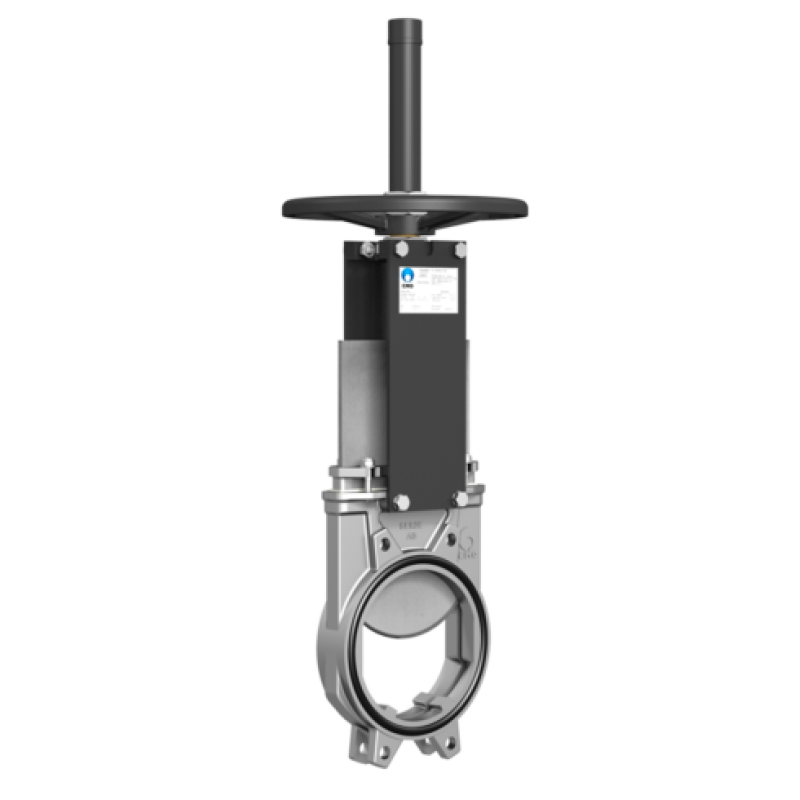

ZT-Knife Gate Valve – Serie AB

CONTACT US FOR PRICE

Bidirectional knife gate valve

– Bidirectional valve with one-piece cast body and seat inserted in valve. Its design provides a completely flat seat with no internal cavities, preventing any build up of solids in the seal area.
– Stainless steel knife gate.
– High flow rates with low load losses.
– Various construction materials and seal and packing materials available.
– Face-to-face distance in accordance with CMO Valves standard.

Utilization

This knife gate valve is suitable for liquids that contain a maximum of 4% suspended solids.

Designed for applications such as:

•  Industry.
• Chemical plants.
• Pumping.
• Food industry.
• Water treatment (clean and waste)

In all these applications, the valve should be installed once the fluid has been filtered, to eliminate solids or large particles it contains.

Sizes

From DN50 up to DN 600

*Others ND on request..

Working pressures

• DN 50 – DN 200 = 10 bar
• DN 250 – DN 400 = 6 bar
• DN 450 = 5 bar
• DN 500 = 4 bar
• DN 600 = 3 bar

The indicated working pressures are valid both ways.
