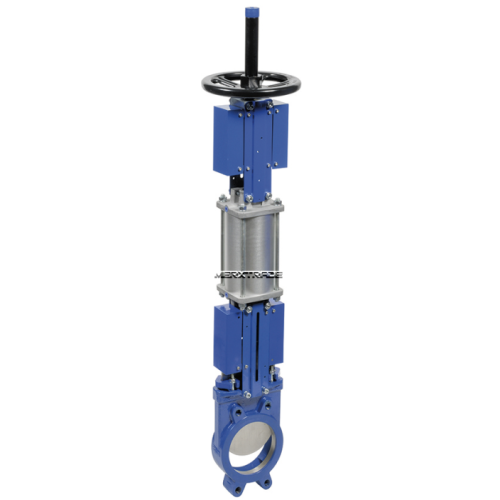

ZT-Knife Gate Valve – Serie D

CONTACT US FOR PRICE

– Unidirectional flanged gate valve (bidirectional option on request), designed for high pressure applications, with self-cleaning seal.
– One-piece die-cast body, with wedges to ensure seal and screwed down bonnet.
– Stainless steel gate.
– Provides high flow rates with low pressure drops.
– Various constructions materials and seal and stuffing materials available.
– Face-to-face distance in accordance with CMO Valves standards.
– An arrow is marked on the body indicating the flow direction.

Utilization

This gate valve is suitable for working with clean liquids or liquids with a concentration of solids.

Designed for applications such as:
– Paper industry.
– Mining.
– Chemical plants.
– Pumping.
– Food industry.
– Sewage treatment.

Sizes

DN50 a DN1200
*Larger sizes to order.

Working pressures

PN 2,5  to PN 100
When a gate valve remains open for long periods of time and the body’s internal walls are parallel, a very large torque is required to close it. The inside of the D model body has a conical shape which provides more space; moreover, the width between the faces in this type of valves is greater than standard, thus achieving more space. This way, when the valve is shut off the solids stored inside it can be easily released.
